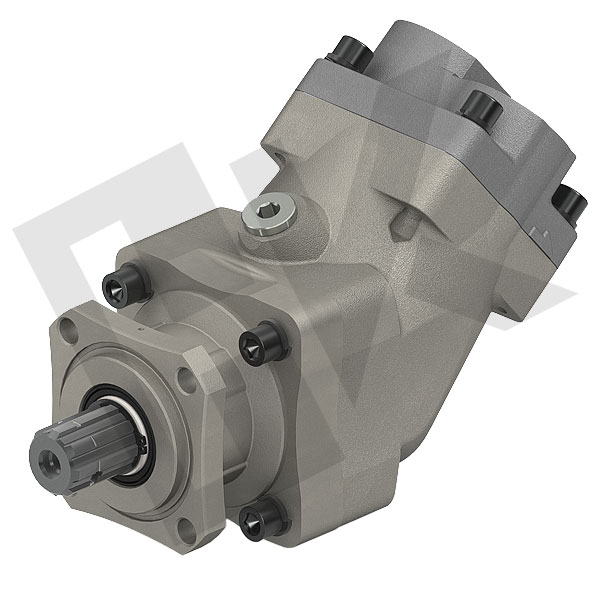

85 CC BENT AXIS PISTON PUMP WITH SCREW COVER CW (RIGHT)

SINGLE ROTATION ISO RIGHT ROTATION COUPLED MOUNTING

Hydraulic Oil Information

Hydraulic Oil Information

● Hydraulic oil type; ISO 46 is recommended in summer and ISO 32 type in winter.
● Hydraulic oil viscosity; The optimum viscosity is 20-100 cSt. The ideal working viscosity is 20-40 cSt (mm2 / s).
● Hydraulic oil operating temperature; The continuous operating temperature range is 30 ˚C to 55 ˚C. Maximum operating temperature 80 ˚C Minimum operating temperature 20 ˚C.
● Hydraulic oil pollution; NAS 1638 class 10 type hydraulic oil must be used.
Technical Details
Specification Value
Pump Type: PISTON PUMP Show All
Displacement (Cm³/rev) 83,6
Serie / Type: BENT AXIS TYPE Show All
Cover Type ISO Show All
Rotation Type SINGLE Show All
Rotation RIGHT CW (Clockwise) Show All
Mounting Type COUPLED Show All
Performance Type HIGH Show All
Max. Cont. Pressure (Bar) 300
Max. Cont. Pressure (Psi) 4350
Max. Int. Pressure (Bar) 320
Max. Int. Pressure (Psi) 4640
Max. Peak Pressure (Bar) 330
Max. Peak Pressure (Psi) 4785
Max. Cont. Speed (Rpm) 1500
Max. Int. Speed (Rpm) 2100

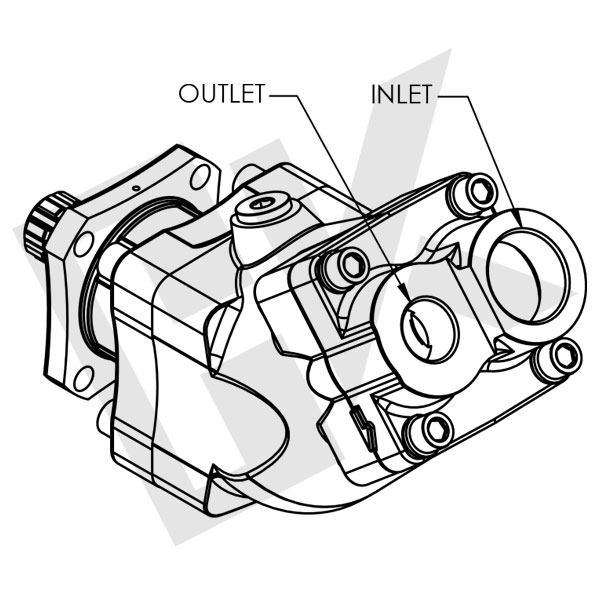

Oil Inlet G 1 1/2"
Oil Outlet G 1"
Weight (Kg) 19
