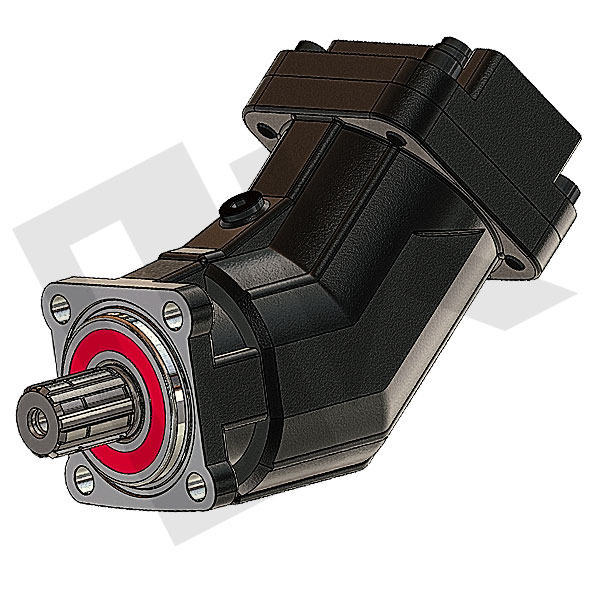

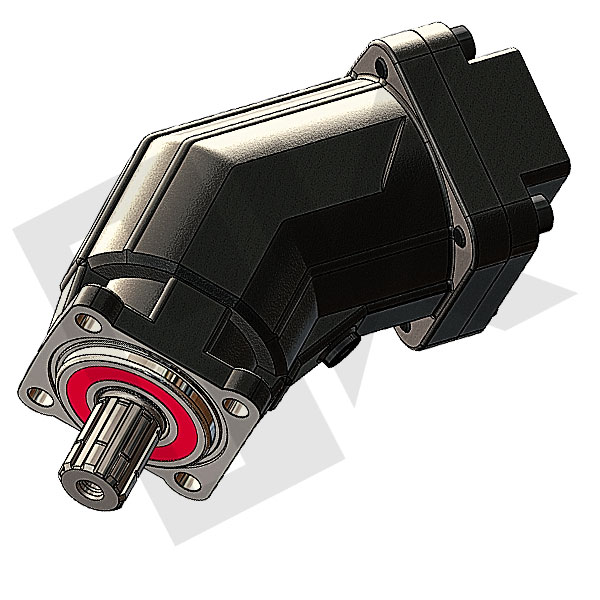

130 CC HYDRAULIC MOTOR

Name: 130 CC Hydraulic Motor
Rating: 4 (1 reviews)

HMTB130

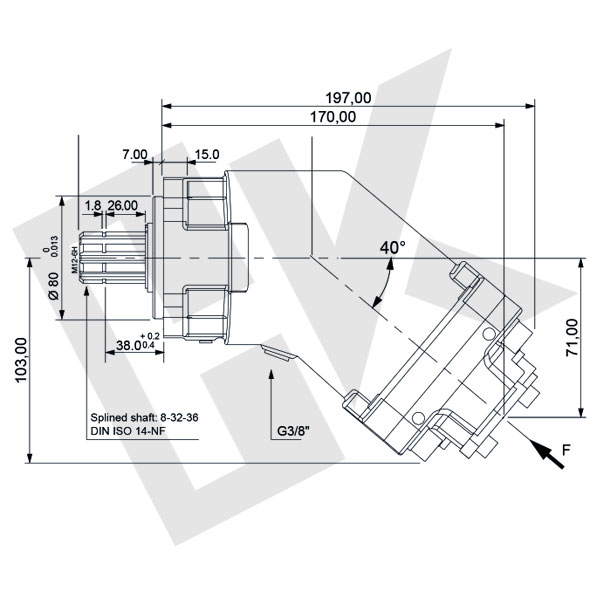

The motor boasts a 40-degree bent shaft design, delivering high power in a compact size while maximizing efficiency and cost-effectiveness. The flange and shaft are engineered for direct mounting onto truck power take-offs (PTOs), ensuring a seamless installation. This permanently bent shaft motor generates robust hydraulic fluid flow, making it ideal for trucks, commercial vehicles, and all stationary hydraulic applications. It operates efficiently as an open-circuit motor with a bent shaft and a rotary assembly, setting a new standard in performance and reliability.

Technical Details
Specification	Value
Displacement (CC)	130
Theoretical Oil Flow L/min at 1000 rpm Motor Speed (CC)	130,00
Theoretical Oil Flow L/min at 1500 rpm Motor Speed (CC)	195,00
Max. Continuous Speed (rpm)	3400
Max. Intermittent Speed (rpm)	4400
Max. Continuous Pressure (Bar)	400
Max. Peak Pressure (Bar)	450
Torque bar (m.N/bar)	2.10
Torque at 350 bar (m.N/bar)	710
Minimum Motor Temperature (°C)	-25
Maximum Motor Temperature (°C)	110
Motor Version	DIN
Mounting Flange	ISO (4 BOLT)
Weight without accessories (Kg.)	16,50
Weight with accessories (Kg.)	17,00

All original part numbers, model numbers, reference numbers,
and brand names are used only for identification and comparison
purposes. They do not imply that the products are original (OEM).

HIDRAKA warrants that its products shall be free from
defects in material and workmanship under
normal use and service for
1 year (12 months) from the date of shipment.
