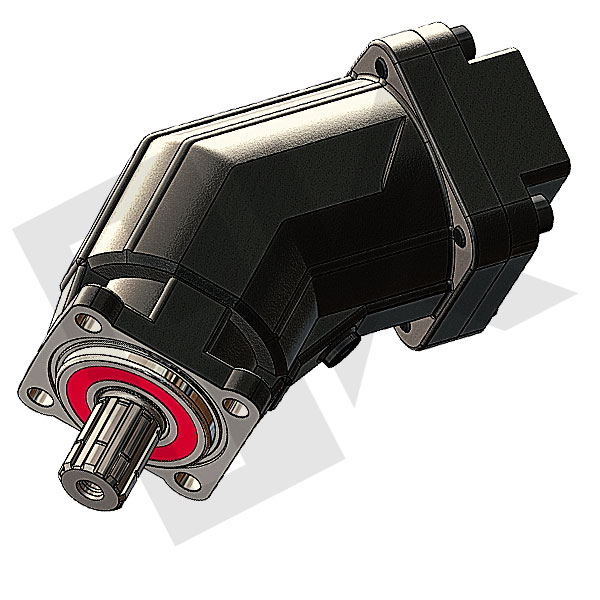

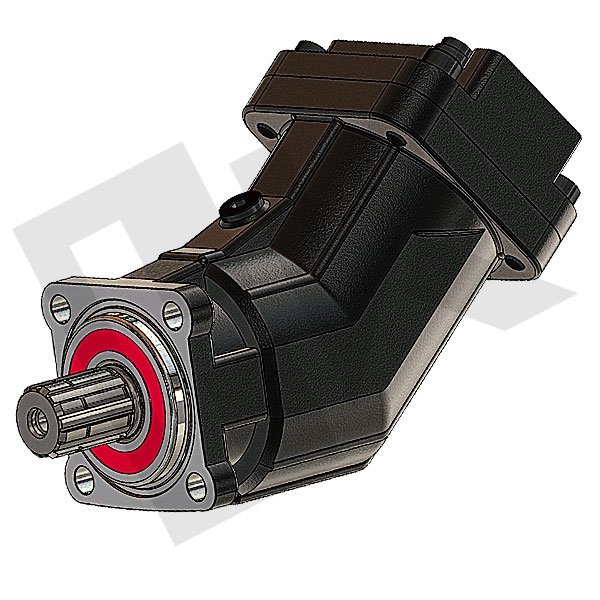

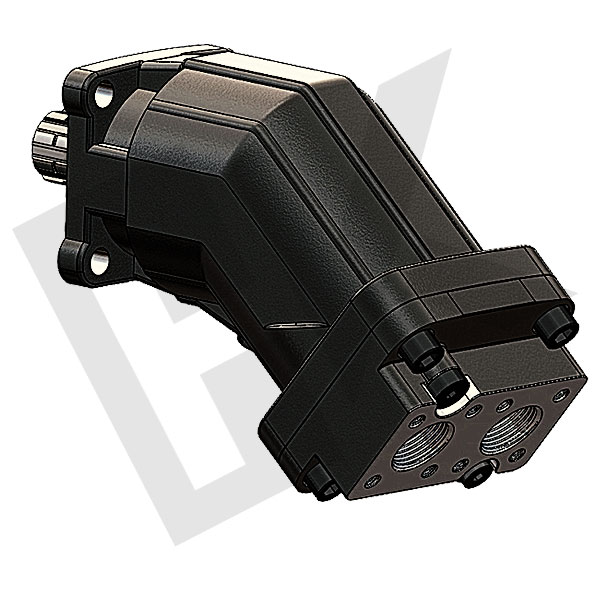

25 CC HYDRAULIC MOTOR

Name: 25 CC Hydraulic Motor
Rating: 4 (1 reviews)

HMTB025

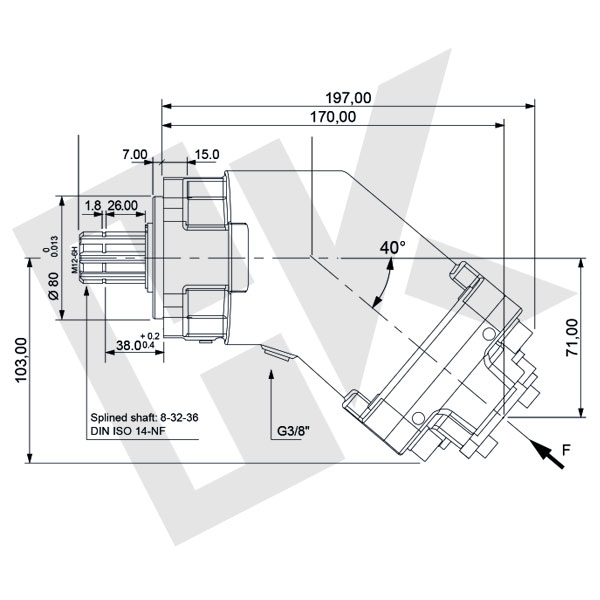

The motor boasts a 40-degree bent shaft design, delivering high power in a compact size while maximizing efficiency and cost-effectiveness. The flange and shaft are engineered for direct mounting onto truck power take-offs (PTOs), ensuring a seamless installation. This permanently bent shaft motor generates robust hydraulic fluid flow, making it ideal for trucks, commercial vehicles, and all stationary hydraulic applications. It operates efficiently as an open-circuit motor with a bent shaft and a rotary assembly, setting a new standard in performance and reliability.

Technical Details
Specification	Value
Displacement (CC)	25
Theoretical Oil Flow L/min at 1000 rpm Motor Speed (CC)	25,00
Theoretical Oil Flow L/min at 1500 rpm Motor Speed (CC)	37,50
Max. Continuous Speed (rpm)	6250
Max. Intermittent Speed (rpm)	6800
Max. Continuous Pressure (Bar)	400
Max. Peak Pressure (Bar)	450
Torque bar (m.N/bar)	0.40
Torque at 350 bar (m.N/bar)	140
Minimum Motor Temperature (°C)	-25
Maximum Motor Temperature (°C)	110
Motor Version	DIN

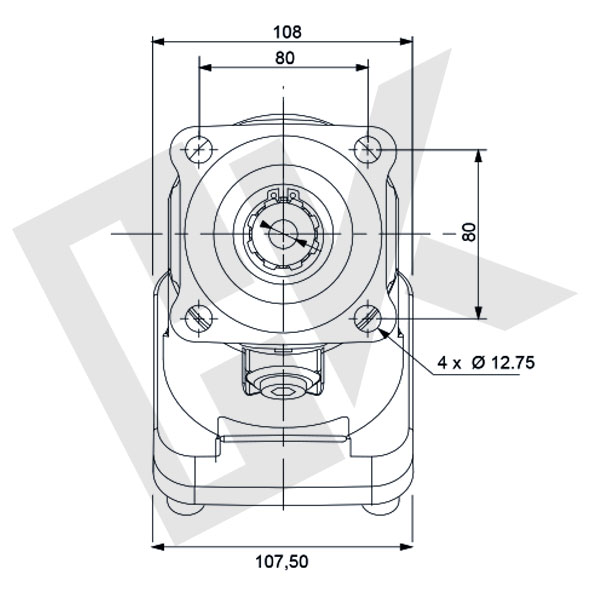

Mounting Flange	ISO (4 BOLT)
Weight without accessories (Kg.)	10,00
Weight with accessories (Kg.)	10,50
