110 CC GEAR PUMP PNEUMATIC WITH SHAFT-SPLINED

BI-DIRECTIONAL ROTATION SHAFT-SPLINED BI-DIRECTIONAL ROTATION SHAFT-SPLINED MOUNTING PNEUMATIC CONTROLLED

Hydraulic Oil Information

Hydraulic Oil Information

● Hydraulic oil type; ISO 46 is recommended in summer and ISO 32 type in winter.
● Hydraulic oil viscosity; The optimum viscosity is 20-100 cSt. The ideal working viscosity is 20-40 cSt (mm2 / s).
● Hydraulic oil operating temperature; The continuous operating temperature range is 30 ˚C to 55 ˚C. Maximum operating temperature 80 ˚C Minimum operating temperature 20 ˚C.
● Hydraulic oil pollution; NAS 1638 class 10 type hydraulic oil must be used.
Technical Details
Specification Value
Pump Type: GEAR PUMP Show All
Displacement (Cm³/rev) 110
Serie / Type: 35 SERIES Show All
Cover Type SHAFT-SPLINED Show All
Rotation Type BI-DIRECTIONAL Show All
Rotation BI-DIRECTIONAL Show All
Mounting Type SHAFT-SPLINED Show All
Control Type PNEUMATIC
Performance Type STANDARD Show All
Max. Cont. Pressure (Bar) 240
Max. Cont. Pressure (Psi) 3480
Max. Int. Pressure (Bar) 260
Max. Int. Pressure (Psi) 3770
Max. Peak Pressure (Bar) 280
Max. Peak Pressure (Psi) 4060
Max. Cont. Speed (Rpm) 1400
Max. Int. Speed (Rpm) 1600
Oil Inlet G 1 1/4"
Oil Outlet G 1"
Weight (Kg) 22

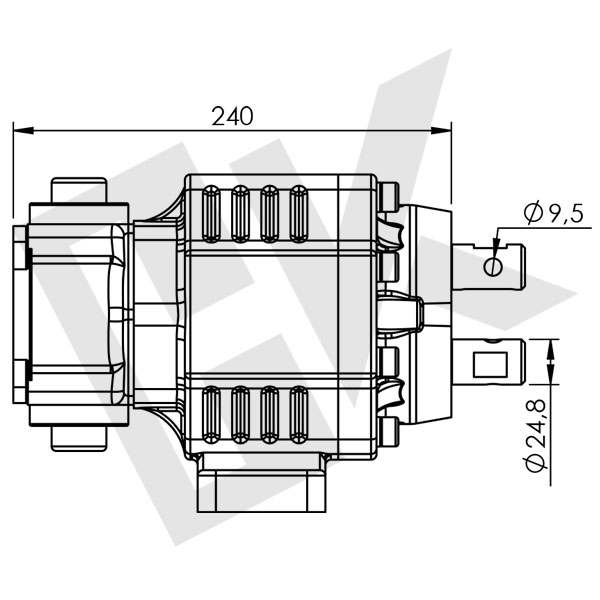

A (mm.) 240
