51 CC GEAR PUMP SAE CW (RIGHT)

430051AER2P Download Catalogue

SINGLE ROTATION SAE RIGHT ROTATION COUPLED MOUNTING

Hydraulic Oil Information

Hydraulic Oil Information

● Hydraulic oil type; ISO 46 is recommended in summer and ISO 32 type in winter.
● Hydraulic oil viscosity; The optimum viscosity is 20-100 cSt. The ideal working viscosity is 20-40 cSt (mm2 / s).
● Hydraulic oil operating temperature; The continuous operating temperature range is 30 ˚C to 55 ˚C. Maximum operating temperature 80 ˚C Minimum operating temperature 20 ˚C.
● Hydraulic oil pollution; NAS 1638 class 10 type hydraulic oil must be used.
Technical Details
Specification Value
Pump Type: GEAR PUMP Show All
Displacement (Cm³/rev) 51
Serie / Type: PLATINUM SERIES Show All
Cover Type SAE Show All
Rotation Type SINGLE Show All
Rotation RIGHT CW (Clockwise) Show All
Mounting Type COUPLED Show All
Performance Type HIGH Show All
Max. Cont. Pressure (Bar) 250
Max. Cont. Pressure (Psi) 3625
Max. Int. Pressure (Bar) 270
Max. Int. Pressure (Psi) 3915
Max. Peak Pressure (Bar) 280
Max. Peak Pressure (Psi) 4060
Max. Cont. Speed (Rpm) 1500
Max. Int. Speed (Rpm) 1700
Oil Inlet G 1"
Oil Outlet G 1"
Weight (Kg) 14

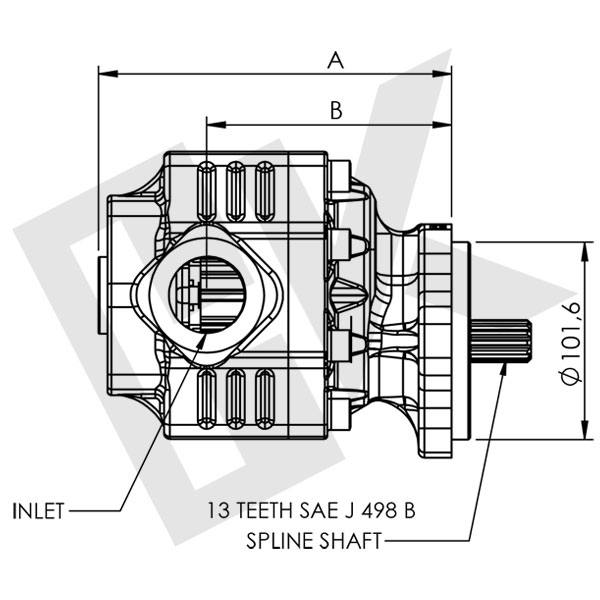

A (mm.) 176
B (mm.) 124
